H.P. Micro-Travel Shower

Tri Tech Industries / Products / H.P. Micro-Travel Shower

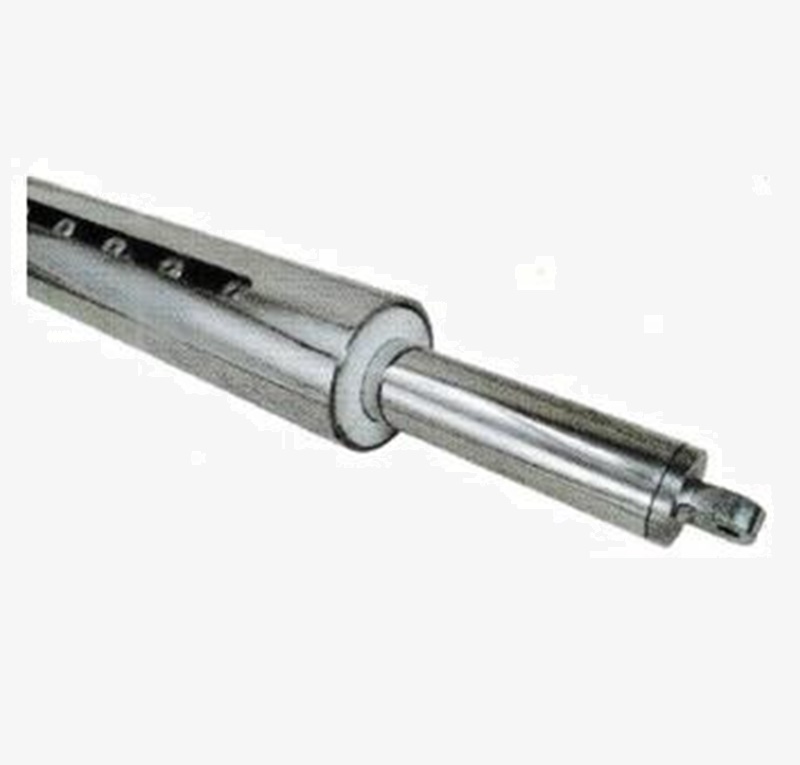

H.P. Micro-Travel Shower

  • Fixed Stroke, Variable Speed: Reversible Screw mechanism for to & fro motion from unidirectional motor rotation. Spare Free model (except screw shaft assy.).
  • Variable Stroke, Variable Speed: Ball Screw / Lead Screw mechanism for to & fro motion by electronic sensing reversal of motor rotation direction by PLC.
  • Variable Stroke, Variable Speed: Ball Screw / Lead Screw mechanism for to & fro motion by electronic sensing reversal of motor rotation direction by PLC.
  • Custom made single-jet / multi-jet shower for any h.p./v.h.p. (10-500 bar) application as per application/ positional demand. Deckle to be covered, working pressure or positional critical-ness are not issue, whether single or multi-jet.

Usage & Application

Online High Pressure Water Jet Cleaning of Paper / Pulp Mill Fabric, Perforated Rolls/ Cylinders, Mould/ Washer cloths etc.

Specifications

  • Both will ensure 100% uniform speed.
  • Zero dowel time at each stroke end.
  • Spare Free model (except screw shaft assy.).
  • Maintenance free high torque A.C. Geared motor with negligible power rating
  • Auto / Manual synchronization with paper m/c speed through VFD.
  • No preventive maintenance….Lubricated for life.
  • All possible stainless steel construction.
  • Most Compact design for easy installation & suitable for any critical location.
